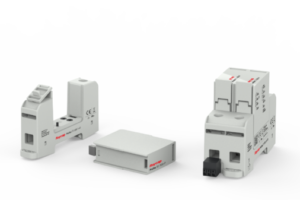

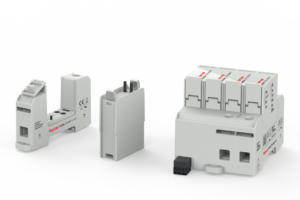

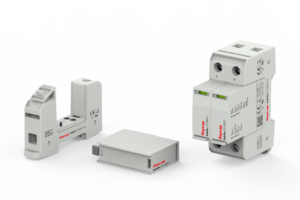

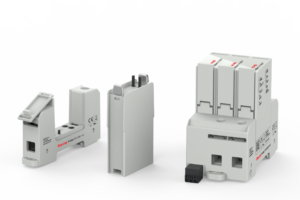

PCB Socket T1 and T2

The PCB Socket T1 products mount upon a printed circuit board (PCB) and are intended for use in AC power systems. The solution is designed to be used with modules that have a Maximum Continuous Operating Voltage [Uc] of up to 880 V AC.

  • For use with Maximum Continuous Operating Voltage [Uc] up to 880 V modules
  • Dual sets of soldering pins for mechanical soldering and higher mechanical stability
  • Two additional mechanical fixation holes
  • Voltage indicator socket
  • Module locking mechanism
  • Vibration and shock withstand capability
  • Sensitive and reliable remote signaling contacts

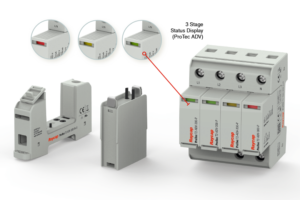

  • Fault indicator, green/no green
  • Compact profile for printed circuit board (PCB) mounting
