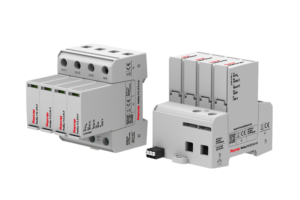

ProTec T1

Raycap’s ProTec T1 solutions are IEC Class I & II / EN Type 1 & 2 Surge Protective Devices (SPD) available in a wide variety of operating voltages, 75 V to 750 V.



  • Available in a wide variety of operating voltages, 75 V to 750 V
  • High impulse current capability using single MOV – 480 V and 750 V versions come with reduced impulse current
  • Sensitive state-of-the-art thermal disconnector
  • Back-up fuse up to 315 A gG, 750 V version comes with 250 A gG
  • Short circuit current rating up to 50 kA
  • Vibration and shock withstand capability
  • VDE-IEC Class I & II / EN Type 1+2 and UL Type 1CA
  • All modules, also N-PE, with operating state green/red
  • Optional remote contact (RC) signaling
